KIRLOSKAR ELECTRIC CO. LTD.
Leaders in Motoring Technology in India.

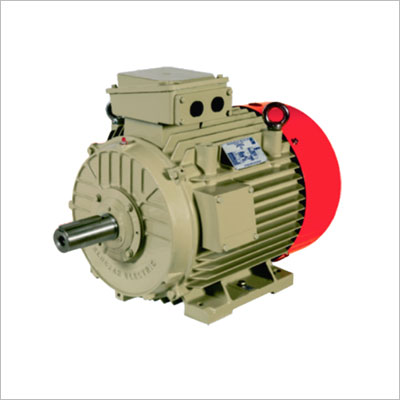

IE2/IE3 Efficiency Cage Motors By KEC
Application -
Motors are Ideal for Various Industrial Applications Like :
- • Pumps
- • Compressors
- • Fans
- • Crushers
- • Machine Tools
- • Textiles
- • Conveyors
Features -
- • Motors with Cast Iron Body from 63 to 355 Frame.
- • Side Terminal Box Option Available.
- • Provision for Dual Mounting Wherever Applicable.
- • Sealed Bearing Arrangement for Frames 63 to 225.
- • Large Terminal Boxes with Sufficient Electrical Clearances and Improved Aesthetics.
- • Optimum Fan Design for Better Cooling & Minimum Energy Consumption.
- • Design With Top Terminal Box as Standard.
- • Terminal Box Position can be Changed at Site.
- • Design With Bolt Arrangement Which Gives more Rigidity.
- • Motors are Tough, Reliable and long Lasting.
- • Motors to Suit for Customized Duty Cycle.
SPECIFICATION -
- Frame & Output (KW) : 0.37KW to 200KW
- Input Voltage (V): 415V + 10%
- Frequency (HZ): 50 HZ + 5%
- Combined Variations : 10%
- Ambient Temp : 50°C
- Duty : S1
- Insulation : Class F
- Temperature Rise : Class B
- Protection : IP 55
- Cooling : IC 411

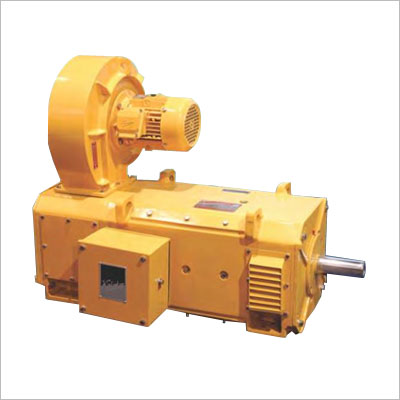

DC Machine By KEC
APPLICATION :
• Steel Industry
• Test Rigs
• Cement Industry
• Rubber Industry
• Sugar Industry
• Printing Machines
• Mining Industry
• Plastic Extruders
- OUR PRODUCT RANGE
- Laminated Yoke Industrial Duty : 0.5 to 5000 kW
- Solid Yoke Machines : 0.37 to 500 kW
- AISE Mill Duty Machines : 5.6 to 970 kW

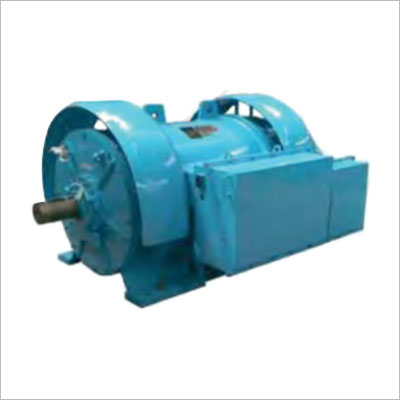

Mill Duty Induction Motor
TYPE :
Screen Protected Drip Proof (SPDP)
APPLICATIONS :
Steel Re-Rolling Mills
Sugar Mills
Cement Industries
- RATING : 187 to 1500kW
- SPEED RANGE: 600-1000 RPM
- MOUNTING: IM 1001

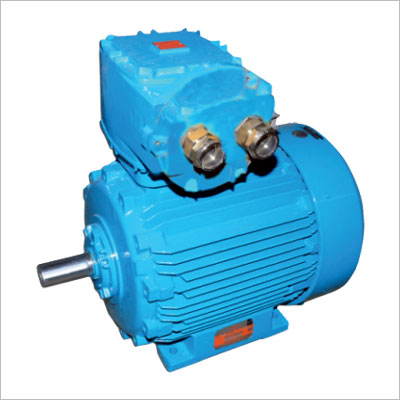

IE2/IE3 Efficiency Flameproof Motors By KEC
APPROVED BY -
- • Central Institute of Mining & Fuel Research (CIMFR)
- • Director General of Mines Safety, Dhanbad (D.G.M.S)
- • Petroleum & Explosives Safety Organisation (PESO)
- • Directorate General Factory Advice Service and Labour Institutes (DGFAS & LI), Mumbai
- • Bureau of Indian Standard (BIS)
SALIENT FEATURES -
- • Robust & Rugged Built with Cast Iron or Fabricated Construction
- • Enclosures are Hydraulically Tested for a Pressure of 10kg/cm2 (150PSI)
- • Specially Designed Top Terminal Box
SPECIFICATION -
- Voltage (V) : 415+/-10%, 3 Phase AC
- Freq (Hz) : 50+/-5%
- Insulation : F
- Duty : S1
- Factor of Intertia : 2
- Protection : IP55
- Mounting : IM1001
- Enclosure : IC411
- Ambient : 0-50°C
- Gas Group : l, llA, llB, llC
- Hazardous Area : Zone l, Zone ll
- Rating : 0.12 - 180 kW
- Frame : 63 - 315
- STANDARDS IS
- • Rating & Performance 325
- • Output & Dimension 1231
- • Degrees of Protection 4691
- • Method of Cooling 6362
- • Construction & Mounting 2253
- • Noise Level 12065
- • Vibration Level 12075
- • Flame Proof Construction IS 2148

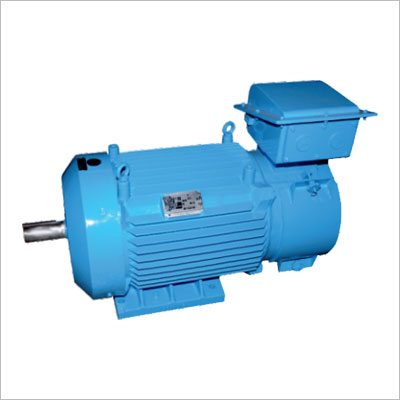

Crane Duty Cage / Slipring Motors By KEC
SALIENT FEATURES -
- • High Pull Out Torque and Low Rotor Intertia
- • Suitable for Various Intermittent Duties S3, S4, S5
- • Impregnation with Class F Thermosetting Varnish
- • Large Slip Ring Unit
- • Ample Size Terminal Box
- • Dynamic Balancing to Ensure Lower Vibration
- • Metallic Fans for Wound Rotor Motors
SPECIFICATION -
- Voltage (V) : 415V+/-10%, 3 Ph AC
- Freq (Hz) : 50 Hz +/-5%
- Insulation : F
- Starts/Hour : 6/150/300
- Over Speed : 2.5 Times Rated Speed or 2000 rpm Whichever is Less for 6 and 8 Poles
- Factor of Intertia : 2
- Cyclic Duration Factor % : 25, 40, 60, 100
- Mounting : IM1001, 1002, 1003 & 1004
- Rating (cage) : 0.37 - 45 kW
- Rating (Wound Motor) : 1.5 - 75 kW
- Frame (Wound Motor) : 100 - 280
- IP/IC : 55/411
- Terminal : RHS from DE for Cage Box Position Motors and on Top for Wound Rotor Motors
