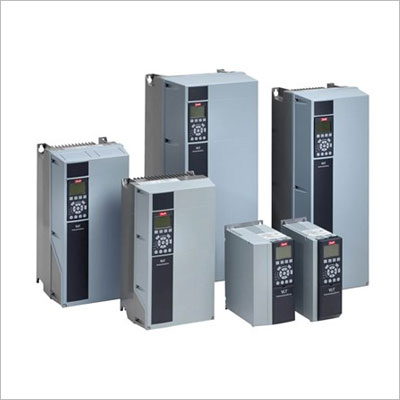

Features and Benefits
• Ambient Temperature is 50°C Without De-Rating
• Smart Logic Control (SLC) Reduces the Need of PLC
• Back-Channel Cooling for Frames D, E and F
• Plug-in Technology
• Integrated Motion Controller
• Intelligent Heat Management, Safe Stop and Safe Torque Off

Applications : Conveyors, Positioning and Synchronizing, Cranes, Mixers, Centrifuges and Palletizing and Packaging

Supply voltages and Power Range
3 x 200-240 V...0.25-37 kW, 3 x 380-500 V...0.37 kW – 1.1 MW,3 x 525-600 V...0.75-75 kW, 3 x 525-690 V...1.1 kW –1.4 MW

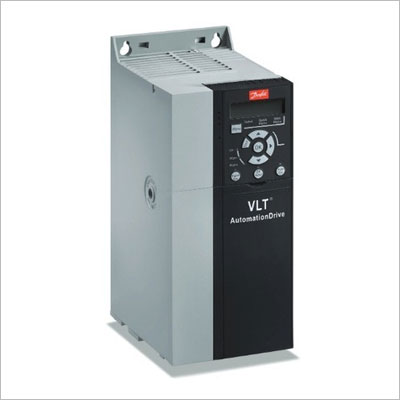

Features and Benefits
• Ambient temperature of 50°C, unique cooling concept and coated PCB
• 5–15% energy savings due to Automatic Energy Optimizer function
• Fast cleaning and extended lifetime due to removable cooling fan
• No need for external controller due to built-in PID controller

Applications : Pumps, Fans, Extruders, Escalators, Winders, Material-Handling Applications and Centrifuge Separators.

Supply Voltage & Power Range
3 x 380 – 480 V 0.37 – 75 kW

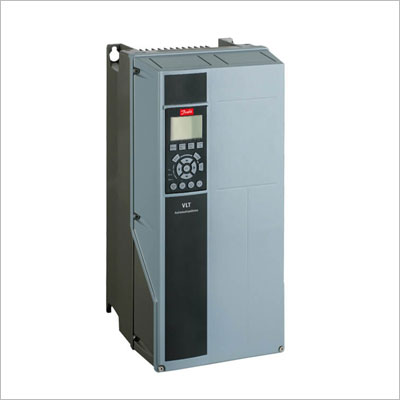

Features and Benefits :
• Specially Designed Software Prevents Harmful Water Hammering in Pipeline
• High Energy Saves to The Unique Back-Channel-Cooling Concept
• Built-in RFI Filter and DC Chokes Reduces Electromagnetic Interference and Harmonic
• 3-8% Energy Savings are Achieved as a Result of Automatic Energy Optimizer

Applications : Centrifugal Pumps and Blowers, Positive Displacement Blowers.

Supply Voltage & Power Range
1 x 200-240 V...1.1-22 kW, 1 x 380-480 V...7.5-37 KW, 3 x 200-240 V...0.25-45 kW
3 x 380-480V..0.37KW–1MW, 3 x 525-600V..0.75-90 KW, 3 x 525-690V..45 KW -1.4 MW

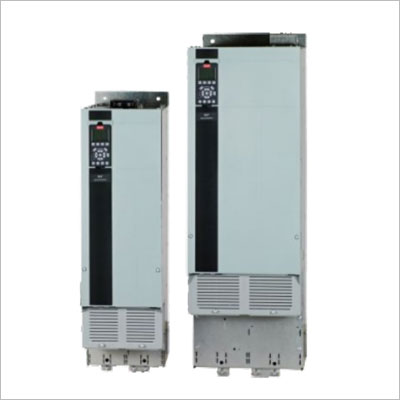

Features and Benefits :
• Ambient Temperature of 50°C, Unique Cooling Concept and Coated PCB
• Automatic Energy Optimizer Function Saves 5-15% Energy
• Fast Cleaning and Extended Lifetime Thanks to Removable Cooling Fan
• No Need for External Controller Due to Built-in PID Controller

Applications : Pumps, Fans, Compressors

Supply Voltage & Power Range
3 x 200-240 V...1.1-45 kW,3 x 380-480 V...1.1 kW – 1 MW,3 x 525-600 V...1.1-90 kW, 3 x 525-690 V...45 kW – 1.4 MW

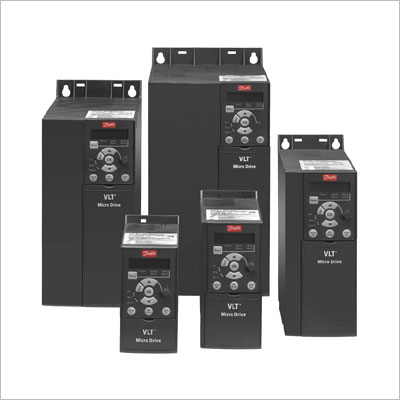

Features and Benefits :
• Compact Design Makes Side-by-Side Mounting Possible
• Coated PCBs, Built-in RFI Filters, Effective Heat Sink
• Kinetic Energy can Transform into Braking Power to Slow Down the Motor

Applications : Conveyors, Pumps, Fans, Mixers, Extruders, Palletizers, Packaging Machines and Other Industrial Appliances.

Supply Voltage & Power Range
1 x 200-240 V...0.18-2.2 kW, 3 x 200-240 V...0.25-3.7 kW, 3 x 380-480 V..0.37-22 kW

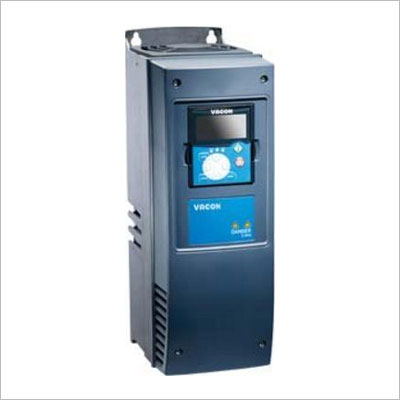

Features and Benefits :
• Fast Fieldbus Options and Exceptional Programming Flexibility
• Five Built-in Expansion Slots for Additional I/O, Fieldbus and Functional Safety Boards
• Fast Response to Changes Due to Dynamic Open and Closed-Loop Vector Control
• The Drive’s DC Fans Decreases Fan Losses Thereby Increasing Reliability and Lifetime
• Coated PCB Protects Against Dust and Moisture

Applications : Elevators, Escalators, Cranes, Hoists, Winches, Cargo Pumps, Pumps, Fans, Conveyors, Machine Tools, Yaw and Pitch Control Applications, Oil Pumps, Winders and Unwinders, Pulp Dryers, Tissue Machinery and Extruders.

Supply Voltage & Power Range
230 V...0.55-90 kW, 500 V...1.1-200 kW 690 V...3.0-2000 kW

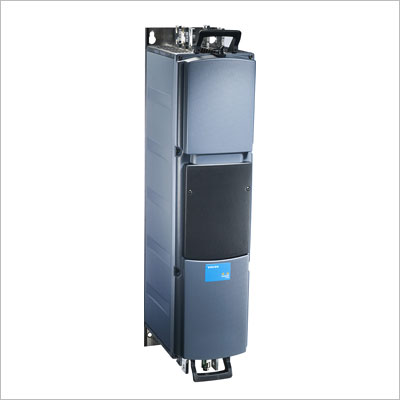

Features and Benefits :
• Compact Design Needs No Air Ducts Reducing Floor Space & Infrastructure
• No AC is Needed Due To Minimal Dissipation of Heat Loss To The Air
• Fulfills All Standards Marine, Safety, EMC and Harmonics Approvals
• Virtually Silent Operation as Large Cooling Fans are Not Needed

Applications : Compressors, Wind Turbines, Extruders, Pumps, Fans, Conveyors, Crushers, Thrusters, and Propulsion, Test-bench, Crane, Winch and Power-Conversion Systems.

Supply Voltage & Power Range
380-500 V...7.5-5150 kW, 525-690 V...110-5300 kW

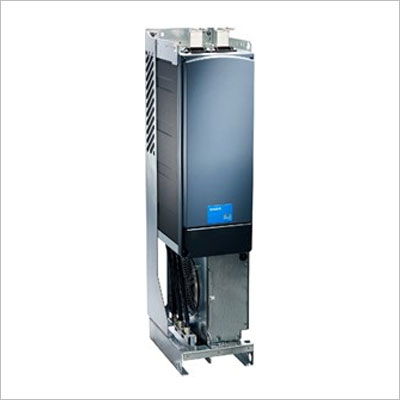

Features and Benefits :
• Regenerative Front-End Feeds Excess Braking Energy Back Into The Network
• Investment Costs are Low as a Result of Reduced Power Cabling and Installation Time
• Cost and Space Savings as Optimized Module Design
• Five Built-in Expansion Slots For Additional I/o, Fieldbus and Functional Safety Boards
• Improvements in Drive Line-Up Tolerance To Voltage Dips/Sags

Applications : Continuous Web and Roller Table Systems, Winders and Unwinders, Cranes, Hoists, Gantry and Trolley Drives, Centrifuges, Winches, Conveyors and Excavators.

Supply Voltage & Power Range
380-500 V...1.1-1800 kW, 525-690 V...1.5-2000 kW

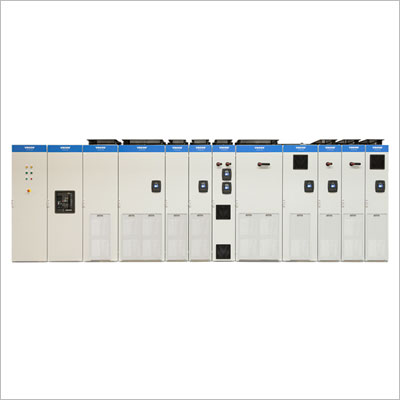

Features and Benefits :
• Cost Savings as a Result of The Standardized Solution
• Quick Set-Up and Maintenance Thanks To The Modular Design and Pull-Out Features
• Minimized Downtime as Spare Parts are Always Stocked and Readily Available

Applications : Compressors, Wind Turbines, Extruders, Pumps, Fans, Conveyors, Crushers, Thrusters, and Propulsion, Test-Bench, Crane, Winch and Power-Conversion Systems.

Supply Voltage & Power Range
380-500 V...1.1-1800 kW, 525-690 V...1.5-2000 kW

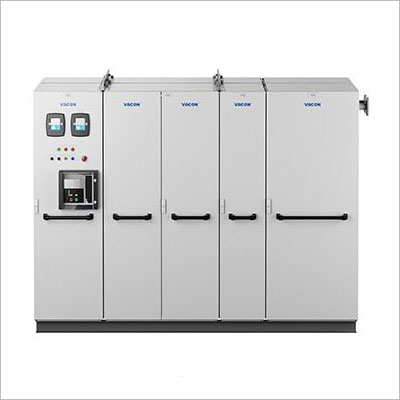

Features and Benefits :
• Drive Lifetime and Reliability are Enhanced Due To Sturdy Cabinet Protection
• Floor Space Requirements and Infrastructure Needs are Reduced as The Compact Design Needs No Air Ducts
• Investment Savings as No Large Air-conditioning Systems are Needed Due To Minimal Dissipation of Heat Loss To The Air
• Fulfills All Relevant International Standards and Global Requirements Including Marine, Safety, Emc and Harmonics Approvals
• Virtually Silent Operation as No Large Cooling Fans are Needed

Applications : Compressors, Wind Turbines, Extruders, Pumps, Fans, Conveyors, Crushers, Thrusters and Propulsion, TestBench, Crane, Winch and Power-Conversion Systems.

Supply Voltage & Power Range
400-500 V...700-1100 kW ,525-690 V...560-1550 kW

Features and Benefits :
• Individual and Customized Control Due To Built-in Plc Functionality
• Optimized Performance in Demanding Environments Thanks To Unique Passive Cooling System
• Fits Into The Tightest of Spaces Due To Its Slender Economical Design
• Supports Asynchronous Induction as Well as Permanent Magnet Synchronous Motors
• Dedicated Functionality To Improve Flow Control in Building-Automation Applications

Applications : Conveyors, Extruders and Packaging Machines, Textile Winders, Processing and Washing Machines, Fans and Pumps.

Supply Voltage & Power Range
1 x 208-240 V...0.25-2.2 kW,3 x 208-240V...0.25-11 kW 3 x 380-480 V...0.37-18.5 kW

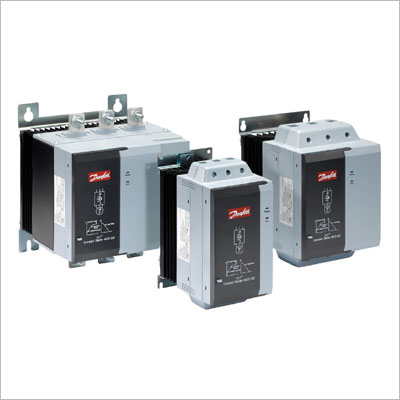

Features and Benefits :
• Panel Space Can Be Saved Due To The Compact Size
• Installation Costs are Minimized and Power Loss Eliminated Thanks To The Built-in Bypass
• More Starts Per Hour and a Higher Load is Possible as a Result of Advanced Scr Control Algorithms That Balance Output Waveform
• Overall Project Investment Is Reduced Due To Essential Motor Protections
• Ambient Temperature of 50°c Thus No External Cooling or Oversizing is Necessary

Applications : Pumps, Conveyors, Fans, Mixers and Compressors

Supply Voltage & Power Range
3 x 200-440 V...7.5-110 kW, 3 x 200-575 V...7.5-110 kW

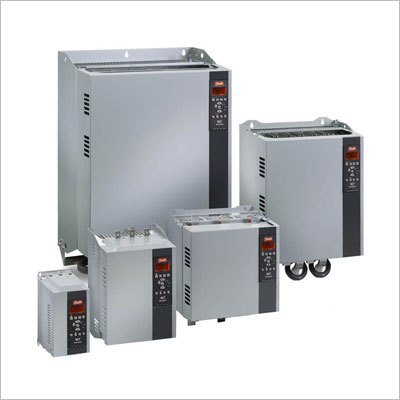

Features and Benefits :
• Quick Menu, Application Setup and Main Menu Made Programming Easy
• Four-line Graphical Display and a Logic Keypad
• The Best Starting & Stopping Profile is Chosen Using Adaptive Acceleration Control
• Motors Can Be Used To Their Full Potential Without Risk of Damage From Overloading Due To Second-Order Thermal Model
• Less Stress On The Motor For Dc Injection Braking Distributed Evenly Over 3 Phases
• Space Can Be Saved, Cabling Costs Reduced and Retrotting Made Easier as a Result of Adjustable Bus Bars Which Allow For Both Top and Bottom Entry

Applications : Centrifugal Pumps and Fans, Conveyors, Crushers, Grinders, Mixers, Compressors, Centrifuges, Mills and Saws.

Supply Voltage & Power Range
200-690 V...7.5-850 kW

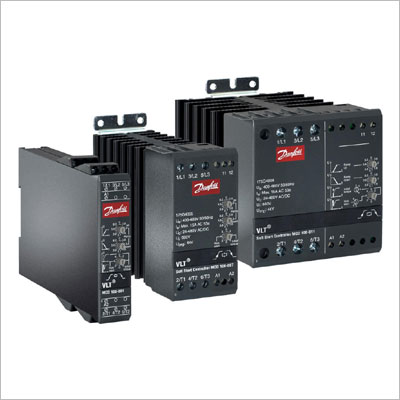

Features and Benefits :
• Panel Space Can Be Saved Due To The Compact Size
• Selection is Simple and Stock is Kept To A Minimum Thanks To Universal Control Voltage
• Commissioning Time and Space are Saved as a Result of Easy Din Rail Mounting For Sizes Up To 30 Kw
• Reliable Operation is Ensured Due To Robust Semiconductor Design and an Almost Unlimited Number of Starts Per Hour Without Derating

Applications : Scroll Compressors or Reciprocating Compressors In Air-Conditioning Units, Conveyors, Pumps, Fans and Mixers

Supply Voltage & Power Range
3 x 208-600 V...0.1-11 kW

Features and Benefits :
• The Lifetime of Electronics are Prolonged Thanks To Innovative Concepts Such as Back-Channel Cooling
• Durability and Reliable Operation is Improved Thanks To Coated PCBS
• A High Degree of Customization is Possible Due To The Wide Range of Options
• Running Costs are Low as a Result of Features Such as Sleep Mode, Progressive Switching Frequency and Power Factor Correction
• Servicing is Easy Due To The Modular Design

Applications : A Range of Applications For The Water and Wastewater, Marine, Oil and Gas and Mining Industries

Supply Voltage & Power Range
380-480 V...190-400 A

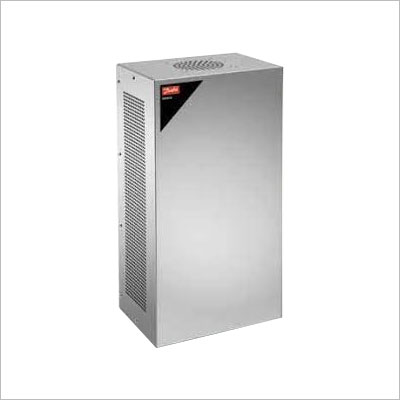

Features and Benefits :
• 100 % Factory Tested & Based On Proven Filter Concept
• High Efficiency, Electrically Matched To The Individual VLT Frequency Converters
• Innovative Coil Design, Side By Side Mounting
• Easy Commissioning

Line Voltage & Current
10 A-480 A (380-415 V AC 50 and 60 Hz) 10 A-436 A (440-480 V AC, 60 Hz)v
15 A-395 A, (600 V AC, 60 Hz)v 15 A-395 A (500-690 V AC, 50 Hz)v
Modules can be Paralleled for Higher Power
